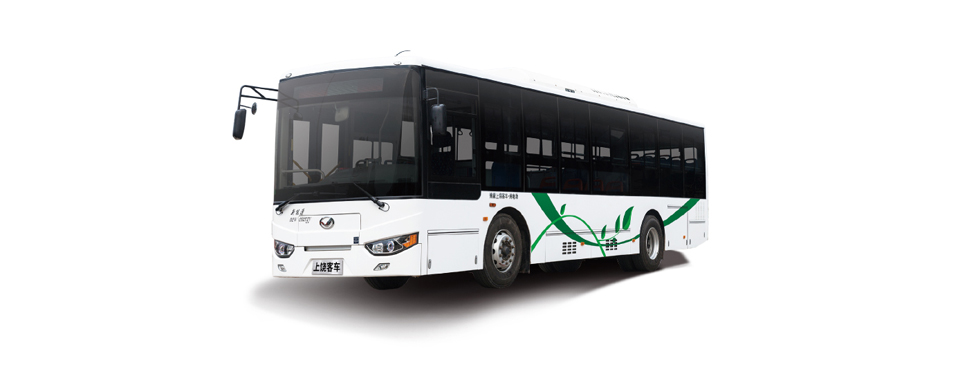

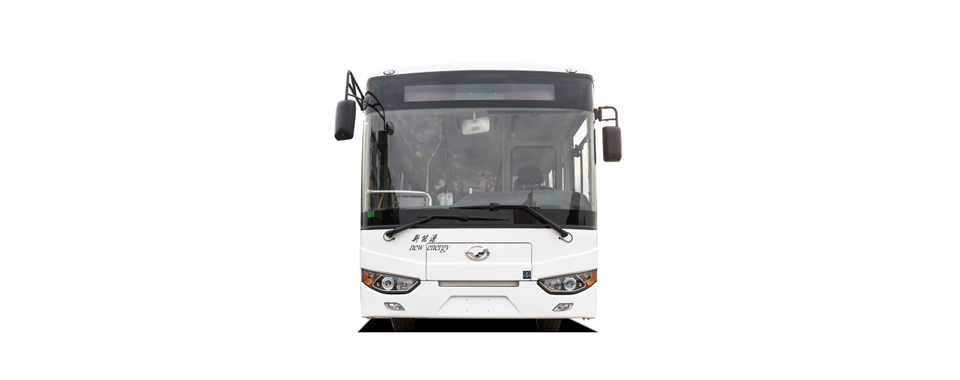

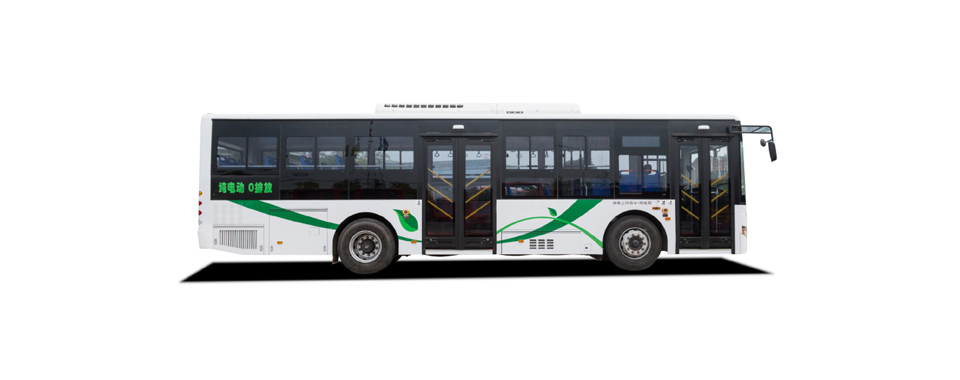

SR6106BEVG Pure Electric Coach

SR6106GB

Exquisite Workmanship, Comprehensive Care

Widen Front And Rear Axles Design

The front and rear axles are widened, and the chassis is allowed to bear more load. The whole vehicle space is more spacious, loading more passengers. The bus positioning is more obvious.


8- Year Battery Life

The cycle is more than 3,000 times in normal temperature and the storage life is more than 15 years.


High Energy Density Battery

The Battery Cells is adopted with high energy density iron phosphate battery. The cycle life and reliability are better than those used by other domestic manufacturers.


Great Power

Adopted high pressure water cooling permanent magnet synchronous motor direct drive, the motor adapts to wider road condition, has reasonable matching of power performance and enjoys excellent acceleration performance. In addition, the motor has the advantages of high efficiency, energy saving, stable performance, high reliability, low operating noise etc.


Fully Loaded Body Structure

The front and rear sides are made of high strength steel and stamping parts, and are processed by phosphatization and electrophoresis. Quantitative SKYACTIV-BODY makes the weight of the whole vehicle much lighter, and the efficiency of comprehensive energy saving higher.

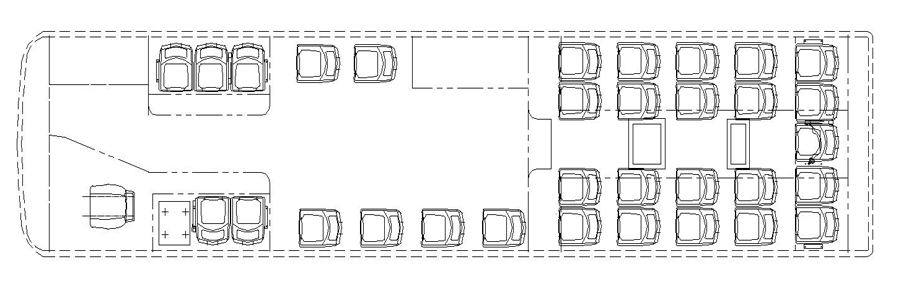

Seat Layout




Model

Model

SR6106BEVG1

Basic Parameter

L*W*H(MM)

10495×2500×3050/3200(Air Conditioner

Front/Rear Wheels Distance(Mm)

2880/1870

Seating Capacity (Person)

26+1

Wheel Base(Mm)

5000

Vehicle Performance Parameters

Maximum Permissible Gradient(%)

≥20

Minimum Turning Radius (M)

19

Maximum Speed (Km/H)

69

Minimum Clearance (Mm)

195

Motor Parameters

Motor Type

Permanent Magnet Synchronous Dc Motor


Maximum Speed Of Motor

2600

Maximum Torque Of Motor (N.M)

2500

Motor Rated Power (Kw)

135

Maximum Power Of Motor (Kw)

185

Battery Specification

Power Battery Type

Lithium Iron Phosphate Battery


Battery Manufacturers

Ningde New energy technology Co. Ltd

Charging Time(H)(60KW Dc Charging Machine)

2-2.5

Power Battery Type

147.45

Chassis System

Chassis Model

Unitary Construction Body


Suspension System

Front 3 Rear 4 Less Spring, Optional Air Suspension


Braking System

Air pressure double circuit driving brake, energy storage spring parking brake, with ABS


Tire

11R22.5,275/70R22.5 Without Inner Tires And Radial Tires


Vehicle Axles

Domestic 5.5 T tray front axle, domestic 11T drum rear axle, optional disc rear axle


Cooling System

Intelligent Thermostatic Cooling System (ATS)


Steering System

Electric Power Steering


Main Body Assembly

Passenger Door

Front and rear double inner pendulum pneumatic passenger door, optional front single and back double inner pendulum passenger door


Floor

15MM bamboo rubber floor, durable domestic floor leather


Defrost System

Electric defrost (cancelled if with independent water heating )


Air Conditioning System

30000 kcal electric single cold air conditioning, optional heating air conditioning, optional independent water heating system


Back-Sight Visual System

Deluxe pole vision rearview mirror(left short right long)


Seat

High back driver chair (shock absorber)/engineering plastic hard surface passenger seat


Side Window

Lower closed and upper push and pull aluminum frame side window, optional built-in side window


Other Configuration

Luxurious interiors, folding curtain, passenger handrails, rings, LED electronic signs, GPS, electronic clock, 2 dry powder fire extinguishers, battery box, automatic fire extinguishing device, CAN bus instrumentation, back door + 2 probe color monitor, etc


Paint

Domestic Plain Paint, Optional Metal Paint


Audio-Visual System

MP3 player, optional multimedia playback system
